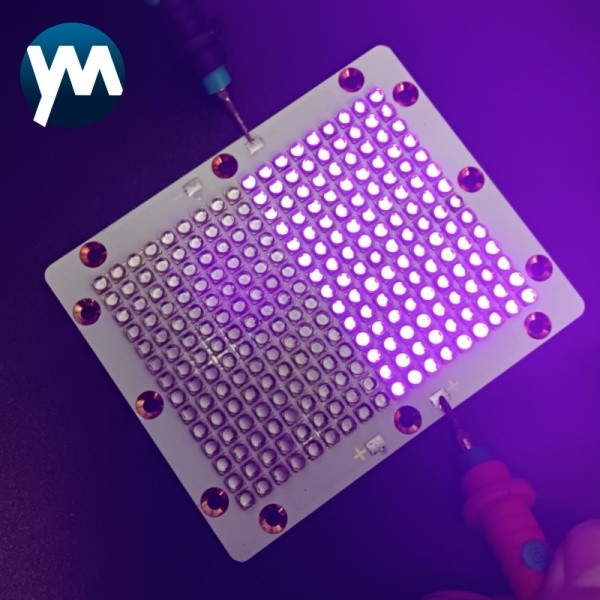

| Product Name | YM-700W-8060 UV LED MODULE |
| Power | 700W |
| Color | UV |
| Number of lamp beads | 252 pcs |
| Diode type | 3535 cob |
| Lens Material of Diode | quartz |
| View Angle of the Lens | 30°/45°/60°/90° /120°/180° |
| Module size | 96mm*77mm*2.0mm |
| Luminous Size | 80mm*60mm |
| Series-parallel | 14 series 9 parallel *2 |
| Wavelength | 365nm, 385nm, 395nm, 405nm |
| Voltage | 47.6-53.2V |
| Current | 4.5-6.3*2A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Features and Benefits:
· User-friendly and intuitive to use
· Level Entry alternative to traditional curing procedures
· Outstanding Eco-Friendly LED Technology replaces Mercury and provides safer and more efficient results
··UV uses less energy, therefore significantly cutting operating costs
· Available wavelengths ensure you get the right System for the work needed
· Adjustable Light Intensity
· Features:Fast, flexible curing and drying
· Versatile application for precision projects
About us
FAQ
Q1 : Can your products’ label, packaging, design be customized?
A : Yes, we offer customization service on these.
Q2 : What is your monthly production capacity?
A : Our factory production capacity is 5,000 sets of uv curing systems per month.
Q3 : What is your minimum order quantity?
A : Normally MOQ 50pcs, but we also accept small sample order .
Q4 : Can I get a sample for quality check?
A : Yes, we offer sample.
Q5 : How soon is the lead time?
A : For sample order, 3-7 days. For bulk order, 15-35 days.
Q6 : What is the lifetime of your uv curing systems?
A : Our uv curing systems can work at least 3 years, these lighting bulbs should be replaced regularly.
If you have other needs, please contact us to provide you with the best solution.
