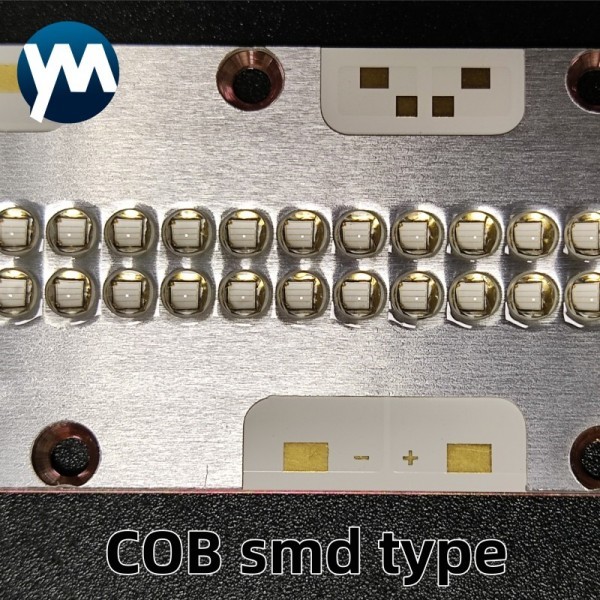

| Product Name | YM-100W-7031 UV LED MODULE |
| Power | 100W |
| Color | UV |
| Number of lamp beads | 36 pcs |
| Diode type | 3535 cob |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30°/45°/60°/90° /120°/180° |
| Module size | 70mm*31mm*2.0mm |
| Series-parallel | 6 series 6 parallel |
| Wavelength | 365nm, 385nm, 395nm, 405nm |
| Voltage | 20-22V |
| Current | 3-4.2A |
| Chip Material | LG,Seoul,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 10000 |
| Warranty | 1year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
Q1:Do you have your own factory?
A1:Yes! We have our own factory in Shenzhen. We have been producing UV LED products for eight years.
Q2:Do you support OEM,ODM service?
A2: Yes! We support OEM / ODM service to customized.
Q3:What is your main products?
A3:UV LED Lamp Bead; UV LED Module; UV LED Single Light.etc.
Q4:Do you have any MOQ limit for led light order?
A4:No! One is also acceptable.
Q5:What is your usual payment terms for orders?
A5:T/T,D/P D/A,MoneyGram,PayPal.We accept multiple payment methods.
Q6:How long does it take for my order to be shipped?
A6:It usually takes 3-7 days, depending on the quantity.
Traditional UV technology compare UV LED curing technology
Conventional UV technology has beed used for over 30 years , with the shortcomings of high energy consumption ,
high heat and high cost that increasingly reflected .
UV LED curing technology in the printing is booming , its better economic benefit , system capacity ,effeicient performance
and environment benefinit are compelling .
YM's UV LED curing technology provides a ideal choice for the curing of digital ,
silk screen , flexography, offset printing , coating and other printing inks .
we devote ourselves to UV LED business,and advancing greener , cheaper and high efficient ink curing technology as well .
YM's entire serial products cover the whole printing industry , and the led chips wavelengths contain 365nm 385nm, 395nm and 405nm ,
we can provide accurate design for more dimensions and specifications.
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
