1. Extra-long life: 20000h.
4.Multiple control modes: Constant current, pedal control, intelligent optical and manual modes
5: Photoelectric induction, instant on/off, no preheating required.
9: Stable output, high uniformity.

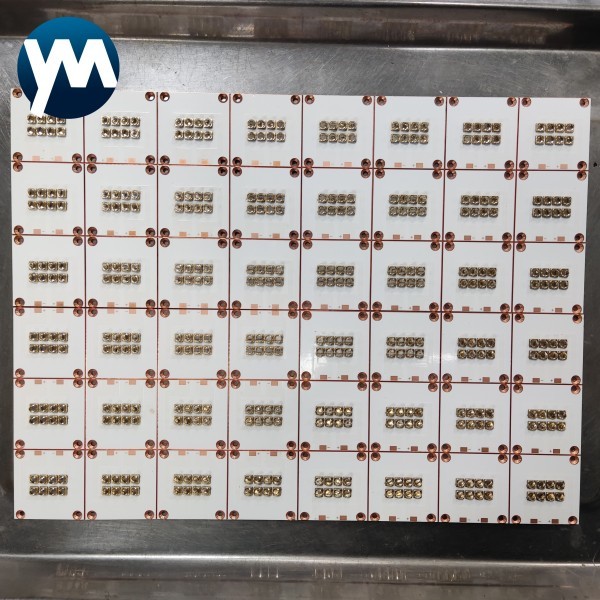

| Item | 24W UV LED Module |
| Power | 24W |
| Color | UV |
| Diode Brand | LG/ Seoul/ Epileds (Optional) |
| Diode type | 3535 smd type |

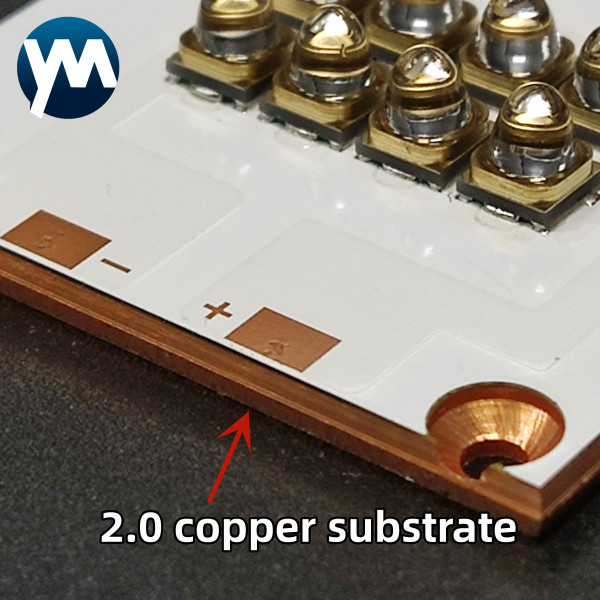

| Size | 30mm*30mm*2.0mm |
| Luminous Size | 15mm*9mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Cooling scheme | Water/Fan cooling |
| Application | Apply in various printing industries, painting, and glue. |
| Lifespan (hours) | 10000 |
| Warranty | 1 year |
| Place of Origin | Guangdong, China |
The question you may concerns
1.What's the wavelength of the UV LED Module.
A: The wavelength of UV LED Module usually are 365-405nm. The wavelength for inkjet printer is
395nm, 385/395nm for printing machine,365nm for UV glue.
2.What's your LED chip brand?
A: The LED chip brand we use are LG, Epileds, Seoul.
3.What's the cooling way?
A: We have water cooling and air cooling UV LED.
4.If the light intensity is adjustable?
A: Yes, the intensity is 0-100% adjustable. We designed different dimming system for different products.
5: What about the warranty period?
A: All of Moyoho products come with a full two-year warranty, Moyoho can offer the parts for free if any parts demanged in warranty.
Applications:
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
"UV LED" curing lamp is a new technology and new way of drying UV series material resin/ink/varnish/adhesive/coating etc. by ultraviolet irradiation, with fast speed and good performance.
Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
