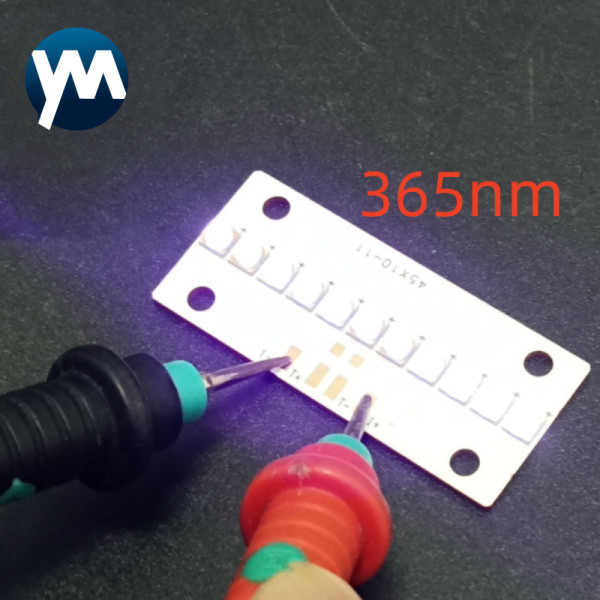

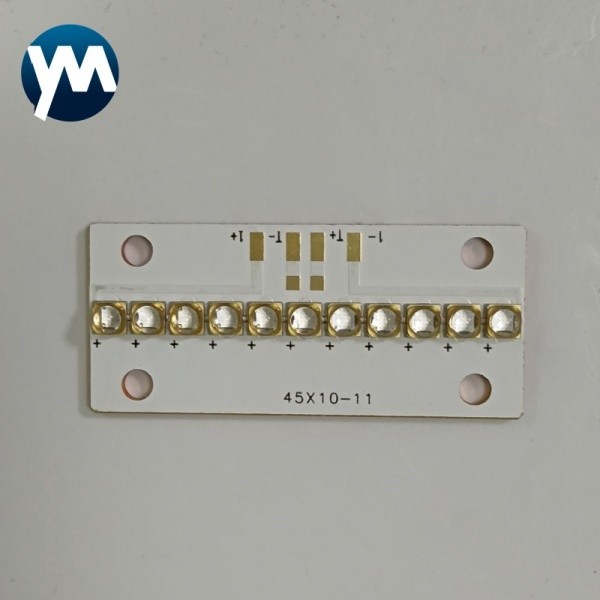

| Product Name | UV LED Module 4510 |
| Power | 30W |
| Color | UV |
| Number of lamp beads | 11 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 60, 120 degree |
| Module size | 45mm*10mm*2.0mm |
| Luminous Size | 45mm*3.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 37-41V |
| Current | 0.5-0.7A |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting, |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Good Price
We can provide the manufacturer's direct selling price and give you the best discount.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) After-sale Service
We provide high-quality and timely pre-sales consultation and after-sales service.
Any questions about UV LED will be answered by professional engineers within 12 hours.
Application
UV lamps are widely used in printing, plastic, wood, footwear, glass, handicraft polishing, painting and other fields.
1. In terms of spraying: ordinary phone case spraying, cosmetic case spraying, Plastic spraying of MP3 small
household appliance shells and other materials
2. Printing: Screen printing, offset printing, 5-color printing, etc. Use UV curing lamps to dry UV ink.
3. In the footwear industry, it is the use of ultraviolet radiation to illuminate the material on the sole of the shoe,
causing a chemical reaction and creating a good affinity between the adhesive and the sole and upper.
4. In terms of wood industry, it is used for curing UV paint coatings on the surface. Due to the excellent performance
If you have other needs, please contact us to provide you with the best solution.
