10000W Single Lamp 20000W Dual Lamp UV Curing Lamp 365nm 395nm Curing Print Ink Glue Water Cooling
UV LED Curing Lamp Product Description
The UV LED Curing Lamp can be Water-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Quick detail of UV LED Curing Lamp
| Item | UV LED Curing Lamp 10000-20000W |
| Power | 10000-20000W |
| Color | UV |
| Diode type | 6565 smd type |

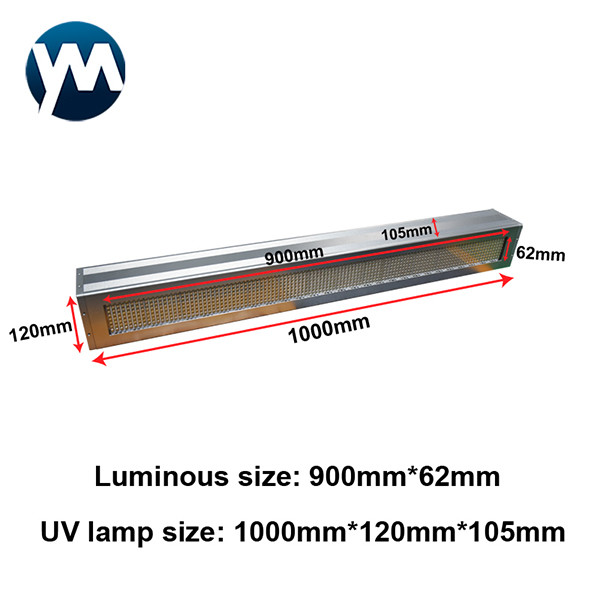

| Size | 1000mm*120mm*105mm |
| Luminous Size | 900*62mm |
| Wavelength | 365nm, 385nm, 395nm, 405nm |
| Cooling scheme | Water cooling |
| Application | Apply in various printing industries, painting, and glue. |

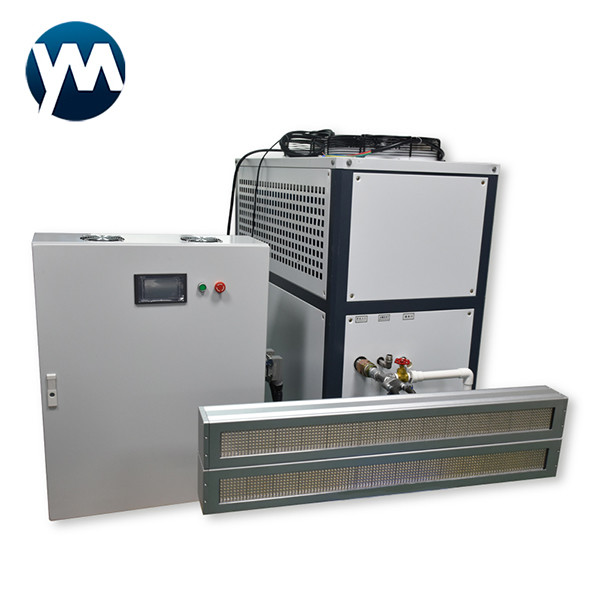

| optional | Single lamp, lamp + power supply, lamp + power supply + water tank |
| Lifespan (hours) | 20000-30000 hours |
| Warranty | 1 years |
| Place of Origin | Shenzhen, Guangdong, China |
FAQ
1. How do i know what wavelength is suitable for me?
A: Normally Wavelength of UV LED lamps is between 365-405nm, inkjet printers use 395nm, printing machine use 385/395nm , UV glue curing requires 365nm.
2. What kind of brands do you use to produce UV LEDs?
A: We use the following brands Epileds,LG,Seoul
3. What kind of materials do you use to make the lamps and lens ?
A: We use Aluminum for lamps and quartz for lens.
Feature of UV LED Module
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device
why choose us
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
