800W High Power UV LED Module 7070 SMD For Printing Industries

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV LED Module 158128

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module 158128

Power : 800W

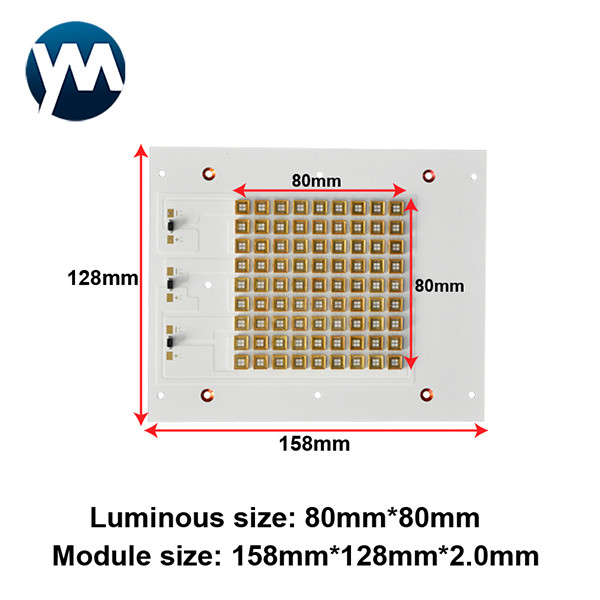

Module Size : 158mm*128mm*2.0mm

Luminous Size : 80mm*80mm

Voltage : 97-103V

Current : 15-18A

View Angle of the Lens : 180 degree

Warranty : 2 Years

Contact Now

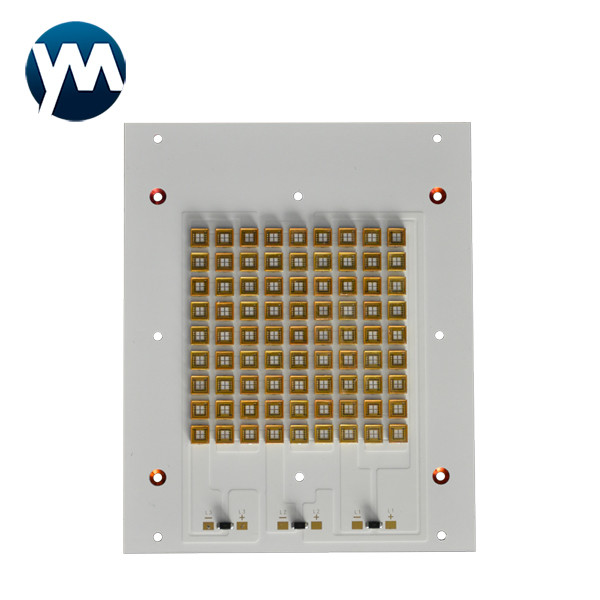

UV LED Module 800W High power UV module Apply to printing industries


UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 158128
Power 800W
Color UV

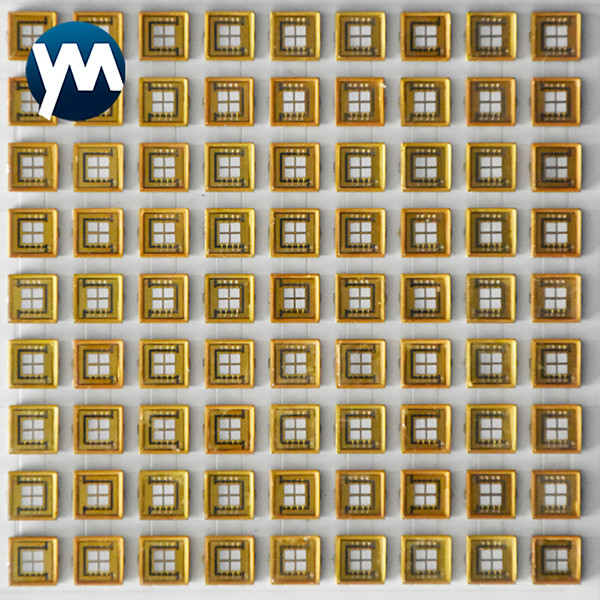

Number of lamp beads 156 pcs
Diode type 7070 smd
Lens Material of Diode quartz
View Angle of the Lens 180 degree
Module size 158mm*128mm*2.0mm
Luminous Size 80mm*80mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 97-103V
Current 15-18A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 1 years
Application Apply in various UV printing industries, painting,UV inks, UV glues
Place of Origin Shenzhen, Guangdong, China

800W High Power UV LED Module 7070 SMD For Printing Industries800W High Power UV LED Module 7070 SMD For Printing Industries800W High Power UV LED Module 7070 SMD For Printing Industries800W High Power UV LED Module 7070 SMD For Printing Industries

Why Choose Us
1) Good price
We provide manufacturers' direct selling prices.
2) Quality assurance
We have our own R&D team, and each product is professionally tested before shipment.
3) Customized service
We can customize products according to your needs.
4) After-sales service
We provide high-quality and timely pre-sales consultation and after-sales service.

Any questions about UV LED will be answered by professional engineers within 12 hours.



Frequently asked questions
Q1. Is your company a manufacturer or a distributor?
A. We are a manufacturing company based in Shenzhen.For the past 7 years we havebeen producing and developing UV LED products.
Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.
Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light.
Q4. Do you have any MOQ limit for led light order?
No! One is also acceptable.
Q5. How to do payment?
A. Alibaba Trade Assurance Order. you can also choose other payment methods.
Q6. How much time is required for shipping?
A. Normally 3-7 days, depends upon the quantity.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
