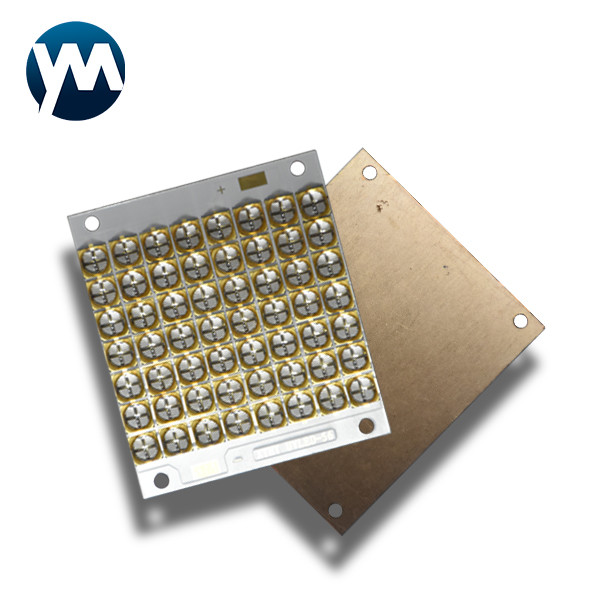

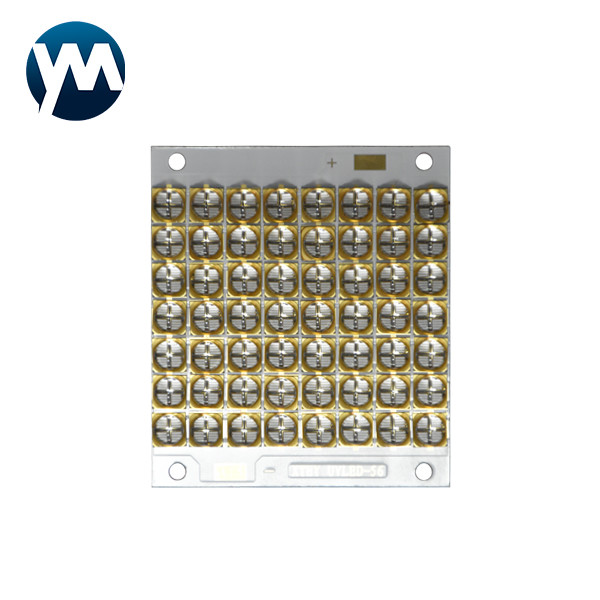

Ink Curing Lamp Beads UV LED Module 560W 365nm 395nm 385nm 405nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV LED Module 5664

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module 5664

Power : 560W

Module Size : 56mm*64mm*2.0mm

Luminous Size : 56mm*50mm

Voltage : 45.5-52.5V

Current : 8-12A

Contact Now

UV LED Module 560W 365nm 395nm 385nm 405nm uv led lamp beads uv ink curing lamp



UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 5664
Power 560W
Color UV
Number of lamp beads 56 pcs
Diode type 6565 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 120 degree
Module size 56mm*64mm*2.0mm
Luminous Size 56mm*50mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 45.5-52.5V
Current 8-12A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 1 years
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

Feature of UV LED Module

• High power and efficiency, high reliability

• Long operation lifetime, low light failure

• Environmental protection, energy saving

• Zener diode protection device



Please pay special attention
1) The operation of welding should not exceed the time limit;
2)Make sure that the welding temprature is below 260C degrees at all time.

3) Do a good job of heat dissipation measures, especially high-power UVLED as far as possible to ensure adequate radiator area.
4) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable constant current driving power supply or IC instead of a constant voltage driving power supply or IC.

Ink Curing Lamp Beads UV LED Module 560W 365nm 395nm 385nm 405nmInk Curing Lamp Beads UV LED Module 560W 365nm 395nm 385nm 405nmInk Curing Lamp Beads UV LED Module 560W 365nm 395nm 385nm 405nm

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
