3D Printer Curing 400W UV LED Module Water Cooling 365nm 385nm 395nm 405nm

Product Categories
shenzhen yuanming co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

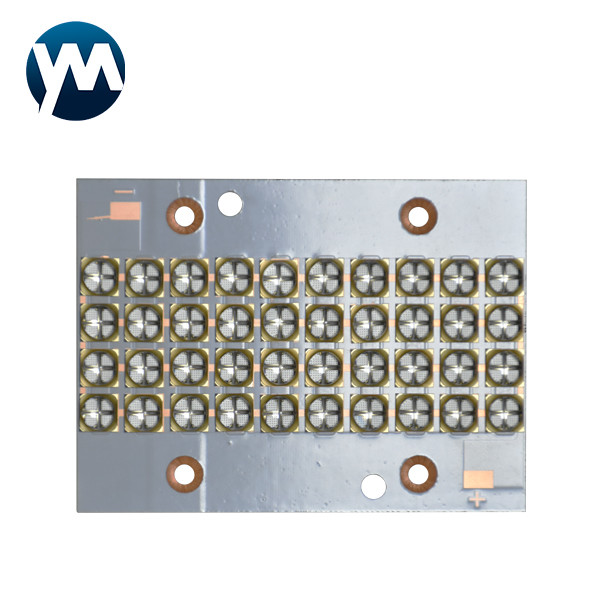

3D Printer Curing 400W UV LED Module Water Cooling 365nm 385nm 395nm 405nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV LED Module 7556

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module 7556

Power : 400W

Module Size : 75mm*56mm*2.0mm

Luminous Size : 75mm*30mm

Voltage : 65-75V

Current : 4-6A

Contact Now

400W UV LED Module 3D Printer Curing LED UV Water Cooling 365nm 385nm 395nm 405nm​



UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 7556
Power 400W
Color UV
Number of lamp beads 40 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 120 degree
Module size 75mm*56mm*2.0mm
Luminous Size 75mm*30mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 65-75V
Current 4-6A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

 3D Printer Curing 400W UV LED Module Water Cooling 365nm 385nm 395nm 405nm3D Printer Curing 400W UV LED Module Water Cooling 365nm 385nm 395nm 405nm3D Printer Curing 400W UV LED Module Water Cooling 365nm 385nm 395nm 405nm

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.


UV LED Module the Ceramics package, it has a high reliability, good heat dissipation, are widely used in the disinfection, curing, printing and other fields, for example, ultraviolet disinfection, uv curing, uv ink curing, printing.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
