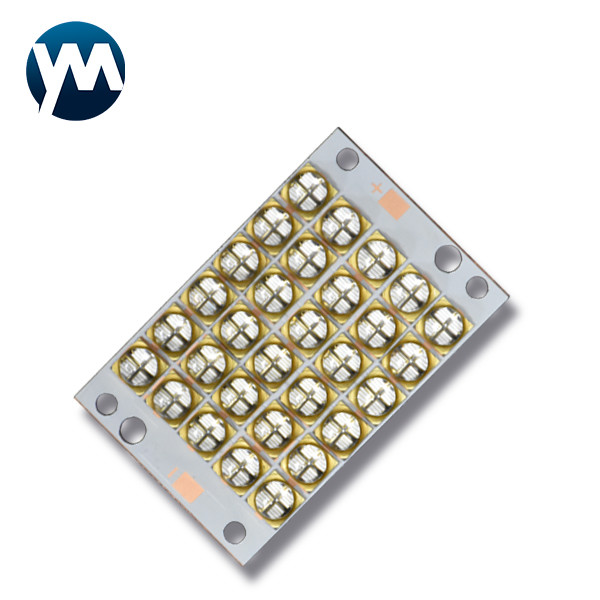

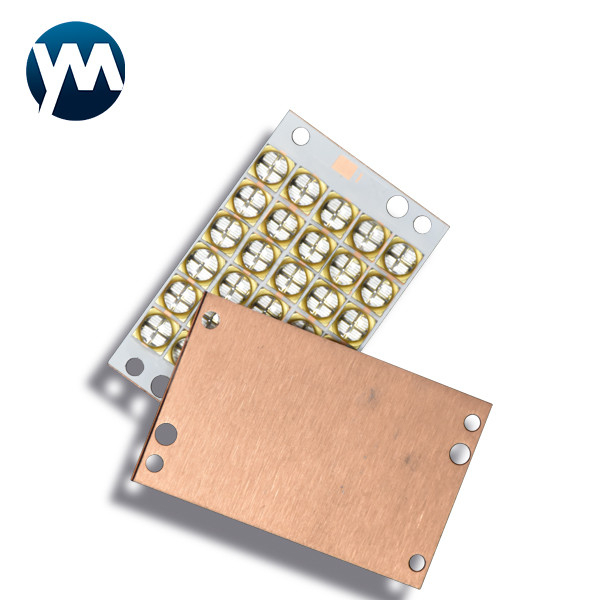

Curing Offset 300W LED UV Light Module 365nm 385nm 395nm 405nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 3656

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV ED Module 3656

Power : 300W

Module Size : 36mm*56.5mm*2.0mm

Luminous Size : 36mm*43mm

Voltage : 39-45V

Current : 5-7.5A

Contact Now

300W UV LED Module UV LED Curing Offset For Curing 365nm 385nm 395nm 405nm



UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 3656
Power 300W
Color UV
Number of lamp beads 30 pcs
Diode type 6565-6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 90, 120 degree
Module size 36mm*56.5mm*2.0mm
Luminous Size 36mm*43mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 39-45V
Current 5-7.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Curing Offset 300W LED UV Light Module 365nm 385nm 395nm 405nmCuring Offset 300W LED UV Light Module 365nm 385nm 395nm 405nmCuring Offset 300W LED UV Light Module 365nm 385nm 395nm 405nm

FAQ

Q1. Are you a factory?
A: Yes! We are from a factory in Shenzhen, China. We have been producing UV LED products for seven years.
Q2. What is your main product?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How to process the order?
A: 1. Let us know your requirements.
2. We quote and provide our suggestions.
3. We will make PI after you confirm the quotation.
4. Make the payment after confirming the details.
5. We will arrange the shipment as soon as possible.



why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
