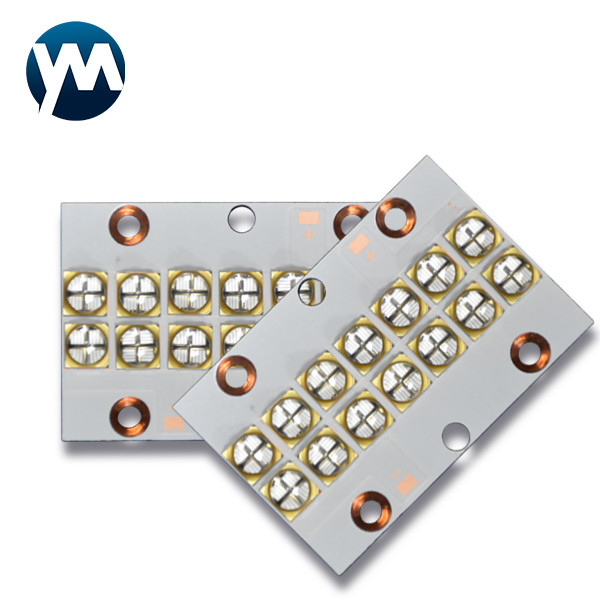

140W UV Curing High Power LED Module Quartz Lens 365nm 385nm 395nm 405nm

Product Categories
shenzhen yuanming co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

140W UV Curing High Power LED Module Quartz Lens 365nm 385nm 395nm 405nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 5335

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV Light Module 5335

Power : 140W

Module Size : 53mm*35mm*2.0mm

Luminous Size : 53mm*15mm

Voltage : 45-52V

Current : 2-3A

Contact Now

140W UV LED Module UV Curing High Power Module Quartz Lens 365nm 385nm 395nm 405nm​



UV LED Module Product Description
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 5335
Power 140W
Color UV
Number of lamp beads 14 pcs
Diode type 6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 120 degree
Module size 53mm*35mm*2.0mm
Luminous Size 53mm*15mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 45-52V
Current 2-3A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package lamp
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

 140W UV Curing High Power LED Module Quartz Lens 365nm 385nm 395nm 405nm140W UV Curing High Power LED Module Quartz Lens 365nm 385nm 395nm 405nm140W UV Curing High Power LED Module Quartz Lens 365nm 385nm 395nm 405nm

FAQ

Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.



Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
