6565 40W 10W UV LED Chip Lamp Beads 365nm 385nm 395nm 405nm

Product Categories
shenzhen yuanming co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

6565 40W 10W UV LED Chip Lamp Beads 365nm 385nm 395nm 405nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV LED Module 4513

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module 4513

Power : 40W

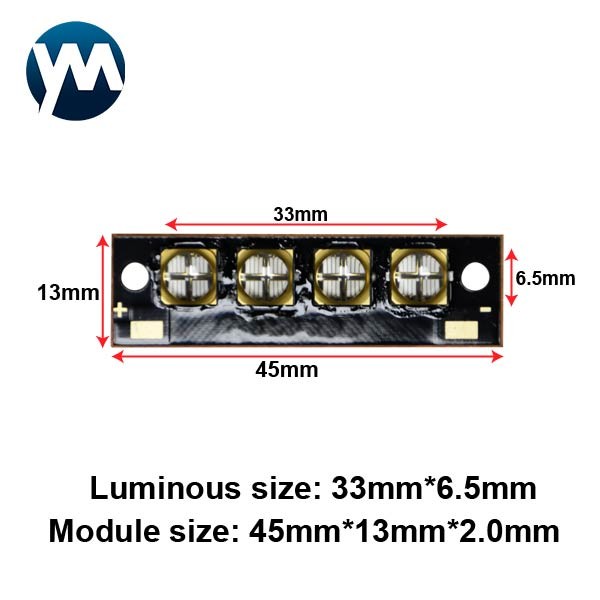

Module Size : 45mm*13mm*2.0mm

Luminous Size : 33mm*6.5mm

Voltage : 26-30V

Current : 1-1.5A

Contact Now

40W UV LED Module 6565 10W UV LED Chip Lamp Beads 365nm 385nm 395nm 405nm

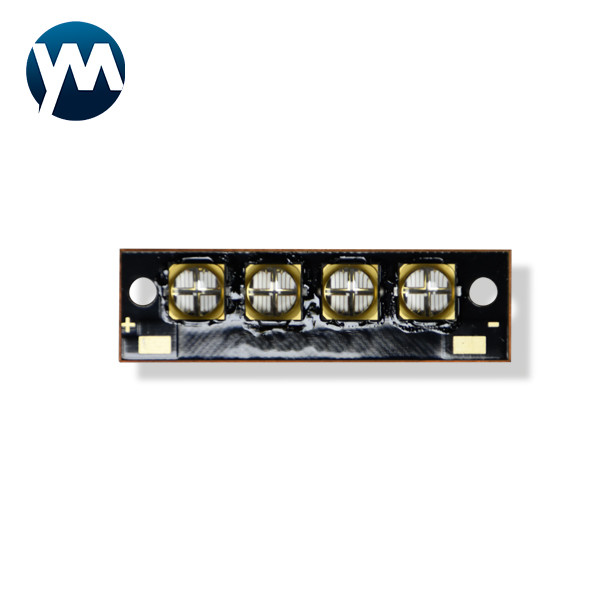

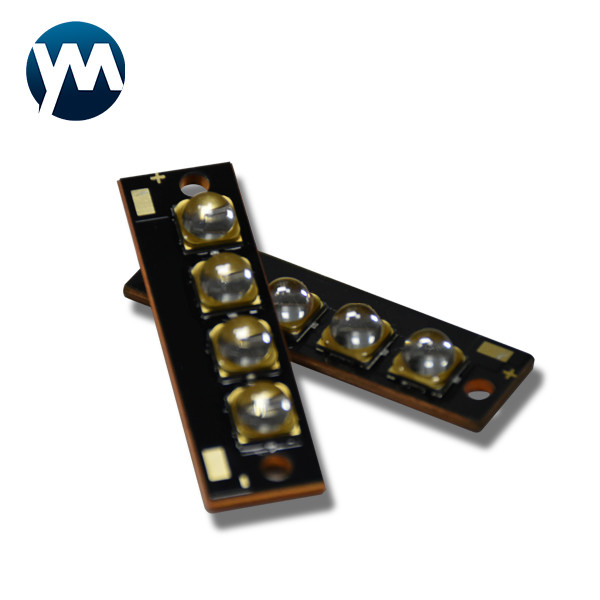

Description of UV LED Module:
The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 4513
Power 40W
Color UV
Number of lamp beads 4 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 90, 120 degree
Module size 45mm*13mm*2.0mm
Luminous Size 33mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 26-30V
Current 1-1.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China


6565 40W 10W UV LED Chip Lamp Beads 365nm 385nm 395nm 405nm6565 40W 10W UV LED Chip Lamp Beads 365nm 385nm 395nm 405nm6565 40W 10W UV LED Chip Lamp Beads 365nm 385nm 395nm 405nm



FAQ

Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen. We have been producing UV LED products for seven years.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.


Matters needing attention

Warm reminder, in order to make our products play the best performance, and to reduce

the failure of customers when using the product, please pay attention to:

1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
