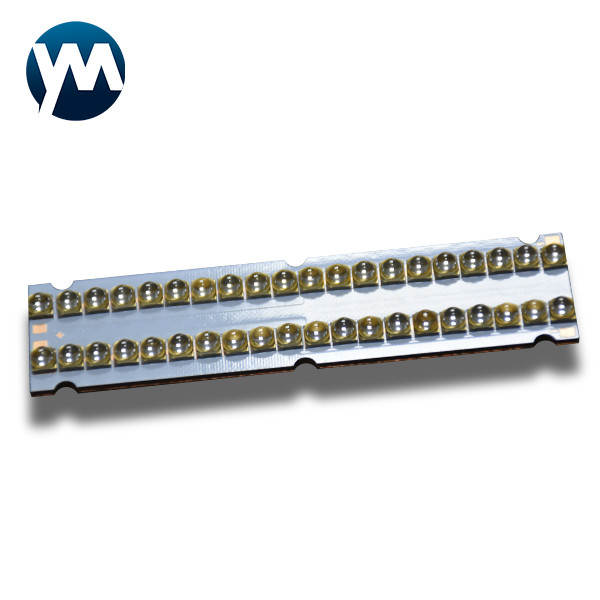

Curing 120W UV LED Lamp Module Quartz Lens 365nm 385nm 395nm

  • 1
  • 2

Brand Name : YM

Model Number : UV LED Module 8020

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module 8020

Power : 120W

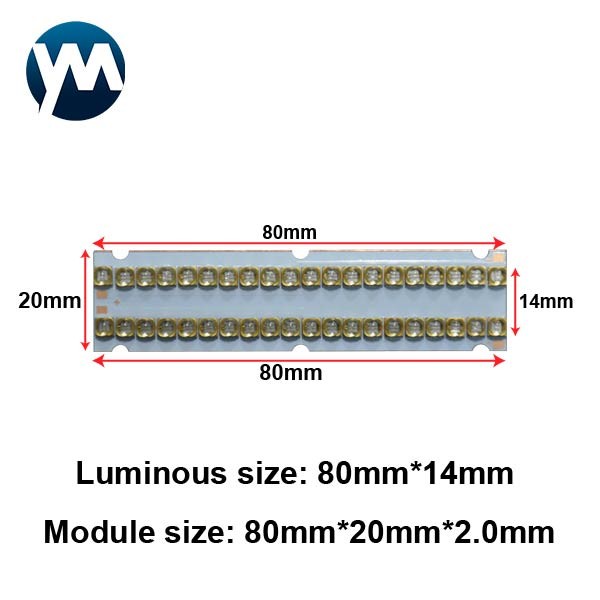

Module Size : 80mm*20mm*2.0mm

Luminous Size : 80mm*14mm

Voltage : 34-38V

Current : 2-2.8A

Contact Now

120W UV LED Module Curing lamp quartz lens 365nm 385nm 395nm 405nm



Description of UV LED Module:

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV LED Module 8020
Power 120W
Color UV
Number of lamp beads 40 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 120 degree
Module size 80mm*20mm*2.0mm
Luminous Size 80mm*14mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 2-2.8A
Chip Material Seoul,LG,Epileds
Encapsulation process High temperature quartz lens package module
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 1 years
Application Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens.
Place of Origin Shenzhen, Guangdong, China

Curing 120W UV LED Lamp Module Quartz Lens 365nm 385nm 395nmCuring 120W UV LED Lamp Module Quartz Lens 365nm 385nm 395nm

Why Choose Us
1) Good Price
We offer the manufacturer's direct selling price.
2) Quality Assurance
We have our own R&D team,Every product has a professional test before shipment.
3) Customized Service
We can customize products as your need.
4) After-sale Service
We provide superior and timely pre-sales advice and after-sales service,

Any questions about UV LED will be answered by a professional engineer in 12 hours.



Application of UV LED Module

1. advertising Printing

2. 3D printing

3. Bar code printing

4. PCB board protection

5. Lens UV glue bonding

6. touch screen protection

7. furniture Varnish Drying

8. Medical instrument

9. Precision optics



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
