Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
Verified Supplier

5 Years
Home > UV LED Module >

UV Module 30W Quartz Lens LED Lamp Beads 365nm 385nm 395nm 405nm

Product Categories
shenzhen yuanming co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

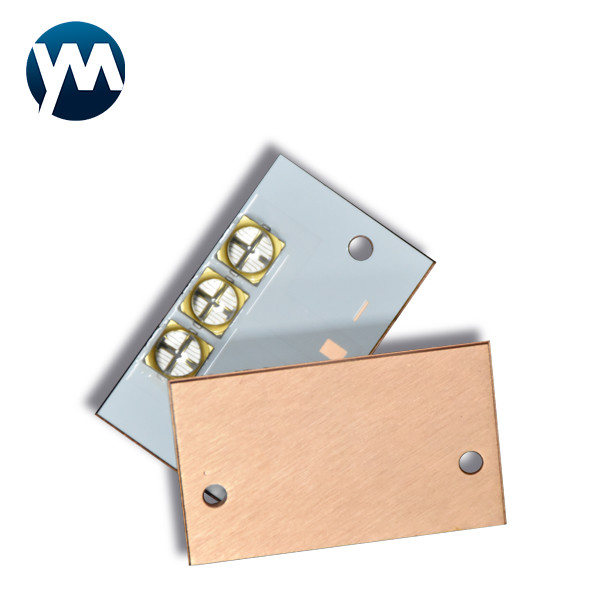

UV Module 30W Quartz Lens LED Lamp Beads 365nm 385nm 395nm 405nm

  • 1
  • 2

Brand Name : YM

Model Number : UV LED Module 4024

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV LED Module 4024

Power : 30W

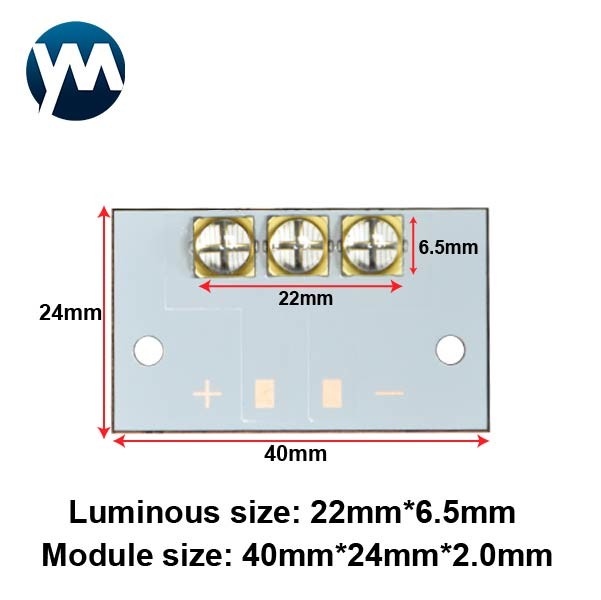

Module Size : 40mm*24mm*2.0mm

Luminous Size : 22mm*6.5mm

Voltage : 19-23V

Current : 1-1.5A

Contact Now

30W UV LED Module Quartz Lens Lamp Beads 365nm 385nm 395nm 405nm



Description of UV LED Module:

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.


Specification of SMD LED Chips:

Product Name UV LED Module 4024
Power 30W
Color UV
Number of lamp beads 3 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 120 degree
Module size 40mm*24mm*2.0mm
Luminous Size 22mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 19-23V
Current 1-1.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China


UV Module 30W Quartz Lens LED Lamp Beads 365nm 385nm 395nm 405nmUV Module 30W Quartz Lens LED Lamp Beads 365nm 385nm 395nm 405nm

Feature of UV LED Module

• High power and efficiency, high reliability

• Long operation lifetime, low light failure

• Environmental protection, energy saving

• Zener diode protection device



FAQ

Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen city, and we have professional team of workers, designers and inspector.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
A: Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.



If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
